Basic Information

• Version: 0.2 - released 14/05/1993
• Author: Christophe Boyanique aka DMViolator
• Program language: French
• License: Shareware (50 Francs, a bit less than 8 euros)
• Can detect: 12 viruses, 29 antiviruses, 6 utilities, 6 miscellaneous, 10 demos. 63 total
• Test configuration: Atari STE TOS 1.62. Xtermine is fully compatible with other Atari computers (TT, Falcon) and latest OS (MultiTOS, Mint...)
• Author's website with the latest demo version: link

Recognized viruses:

• Bootsector viruses: Ghost, C'T, OLI, Kobold #2, Signum BPL, BHP, Mad, Swiss, PD141, Toubab, VDU, Raster & Text
• Link virus: None
• Note1: Xtermine can import The Killer, Exorcist and some Sagrotan (with some restrictions) bootsectors libraries
• Note2: Xtermine database identifies Raster & Text as a virus (which is not) and Sagrotan 4.18 as a vaccine (which is not at all but a sneaky virus)

Challenge 1: Recognize bootsector viruses not loaded in memory

Directions:

To test a floppy disk using Xtermine, here are the following actions:

• Insert the floppy disk to test in drive A:
• Select the menu Boot
• Select the menu action Lecteur A: to choose the drive
• Select the disk and click Ok
• Select the menu Boot
• Select the menu action Lire to test the bootsector
• Click Ok to validate the action

Virus (difficulty)	Analysis	Result

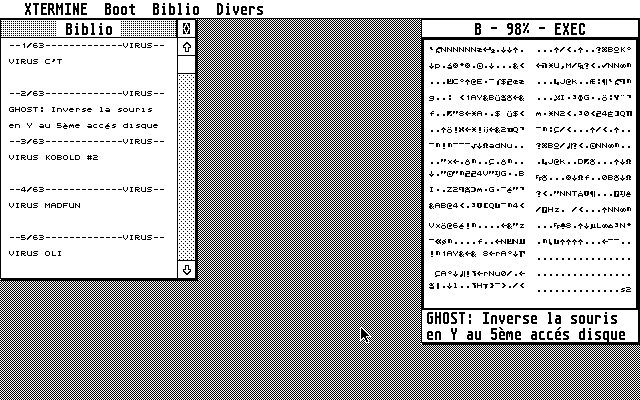

Ghost (1/5)		Xtermine successfully identified the Ghost virus

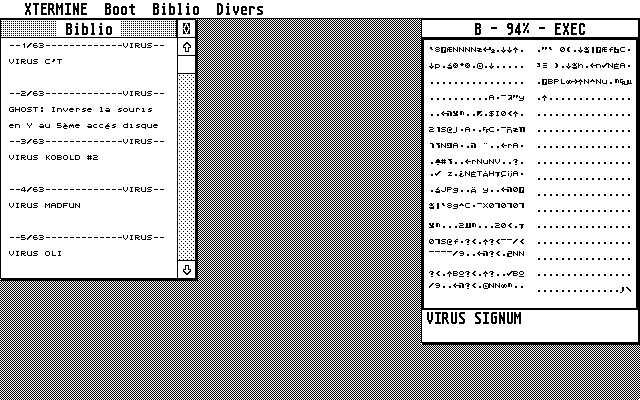

Signum BPL (1/5)		Xtermine successfully identified the Signum BPL virus

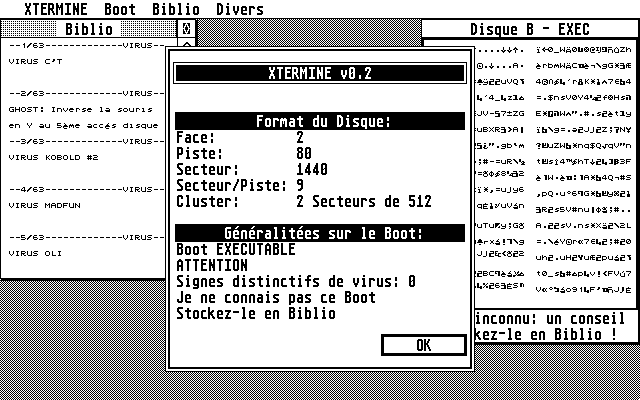

Macumba v3.3 (4/5)		Xtermine said it is an unknown executable bootsector with 0 signs of viral infection

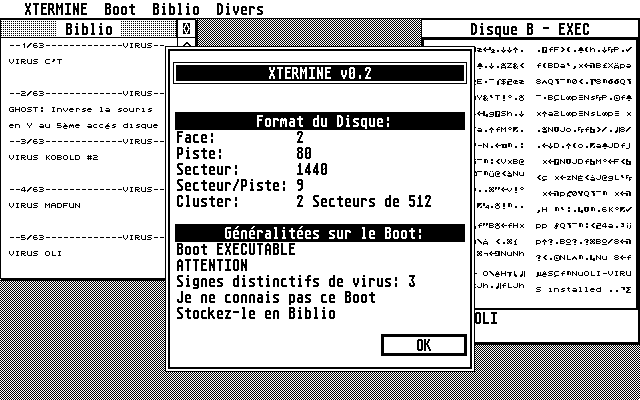

Carpe Diem (2/5)		Xtermine said it is an unknown executable bootsector but it has 3 signs of viral infection

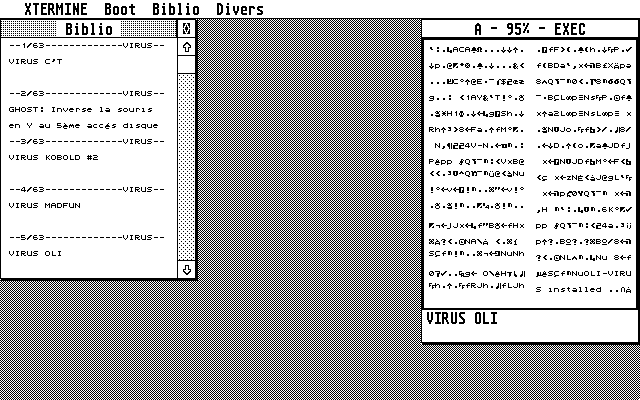

OLI (1/5)		Xtermine successfully identified the OLI virus

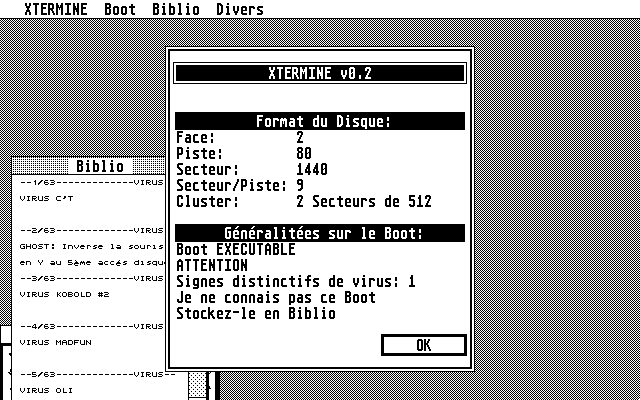

OLI2 (1/5)		Xtermine reported that it detected only 1 sign of viral infection

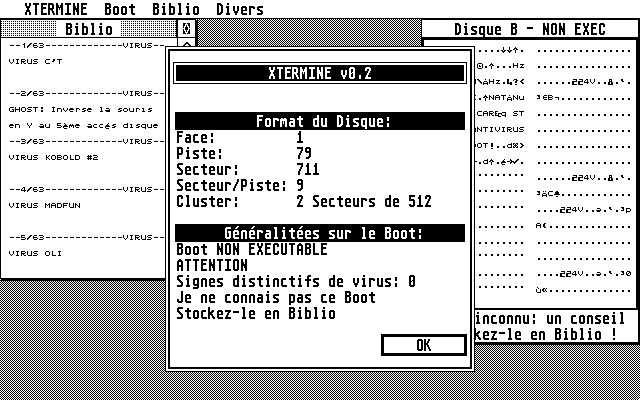

EICAR (3/5)		Xtermine said it is an unknown non-executable bootsector with 0 signs of viral infection

Challenge 2: Recognize bootsector viruses loaded in memory

Xtermine cannot scan memory, this option is not implemented in version 0.2.
However, while stealth viruses are in merory Xtermine:

• Successfully recognized the OLI virus in the bootsector when it was in memory (which catch floprd trap calls) !
• But it did not recognize OLI2 which catch rwabs calls

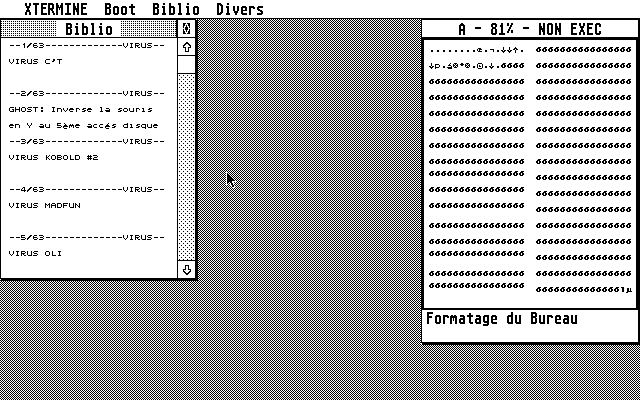

OLI2 failed detection, Xtermine "thinks" this is a safe TOS formatted disk:

That indicates that Xtermine probably uses rwabs to read the bootsector and not lower level access (talking to the FDC directly) to prevent any misdirection.

Challenge 3: Recognize a link virus

Xtermine is not capable of analyzing files and detectking link viruses.

Challenge 4: Restore a broken bootsector

Directions

• Insert the floppy disk to test in drive A:
• Select the menu Boot
• Select the menu action Lecteur A: to choose the drive
• Select the disk and click Ok
• Select the menu Boot
• Select the menu action Lire to test the bootsector
• Click Ok to validate the action
• Select the menu Biblio
• Select the menu action Inserer Boot

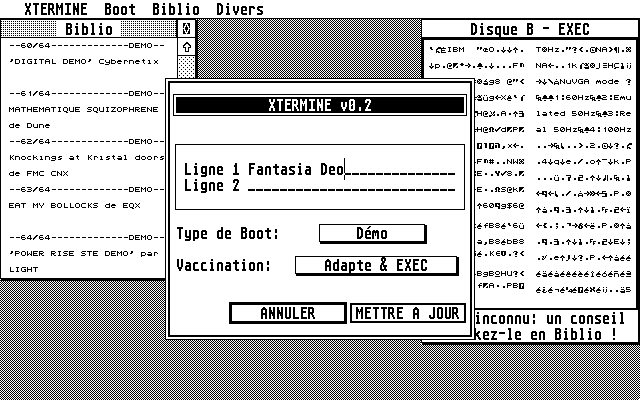

• Add a description, select the bootsector type, select the vaccination type
• Click METTRE A JOUR to save the bootsector to the library

After you have saved the bootsector to the Xtermine library, you can load it into the bootsector. To do this, follow the instructions:

• Find the saved bootsector in the list
• Press and hold the button on the bootsector you want to put on the disk
• Select Vacciner and release the button
• In the menu that opens, click Vacciner A:

Congratulations! You have written your bootsector to the disk!

Challenge 5: Vaccine a non executable floppy disk

Directions

With Xtermine, you can vaccinate a disk with any of the provided bootsectors on the left. To write to the disk, repeat these steps:

• Press and hold the button on the bootsector you want to put on the disk
• Select Vacciner and release the button
• In the menu that opens, click Vacciner A:

To write the Xtermine vaccine, simply repeat these steps with the Raster & Texte vaccine. Interesting fact: Xtermine has a second vaccine that is labeled as a virus.

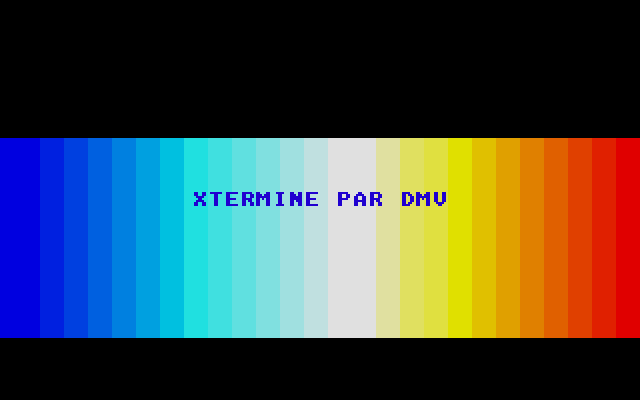

Here is what we see upon booting:



Those vaccines don't do much rather than showing nice rasters, that's more a pretty beacon than real vaccines preventing viruses.

Challenge 6: Analyze a suspicious bootsector

Directions

Xtermine checks the bootsector similarly to how Sagrotan does. But its heuristic analysis is much less advanced than Sagrotan's.

• Xtermine does not check vectors
• Xtermine checks the checksum ($1234)
• Xtermine does not check for the Magic long word ($12123456) for "non-executable" bootsectors (like EICAR)
• Xtermine performs heuristic analysis of the bootsector, heuristic details are not described.
• Xtermine checks the BPB

Challenge 7: Detect a malware when Xtermine is not running

Directions

Xtermine doesn't have any resident TOS Accessory which can detect viruses while Xtermine is not running.

Summary and Conclusion

Before the final results, we would like to thank Christophe, a lot. Christophe took the time to find his old floppy disks, test them in order to provide us a fully registered version of Xtermine. We are extremelly grateful. So again, Christophe, thanks a lot!

In the following table, we summarized the challenges results:

Challenge	Result
Recognize bootsector viruses not loaded in memory	4/7
Recognize bootsector viruses loaded in memory	1/7
Recognize a link virus	0/1
Restore a broken bootsector	1/1
Vaccine a non executable floppy disk	1/1
Analyze a suspicious bootsector	3/5
Detect a malware when Xtermine is not running	0/2
Total	10/24

In conclusion, Xtermine is a good antivirus, user friendly, that has good detection capabilities (good but undocumetned heuristics and usage of rwabs). And icing on the cake, in addition to your own bootsectors, you can even add libraries from other well known antiviruses!

Nevertheless, the lack of support for Link viruses and memory check are a miss.
