Retrovirology — Sagrotan

Basic Information

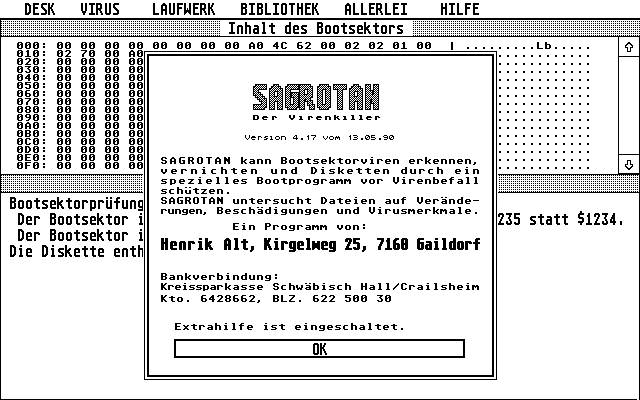

Latest version: 4.17 released 13.05.1990
Author: Henrik Alt
Language: German, some versions translated into English and French
Can detect: 15 viruses, 91 standard boot sectors, 106 total. X file viruses
Other known versions: 4.03, 4.06, 4.10, 4.12, 4.14, 4.17
License: Freeware

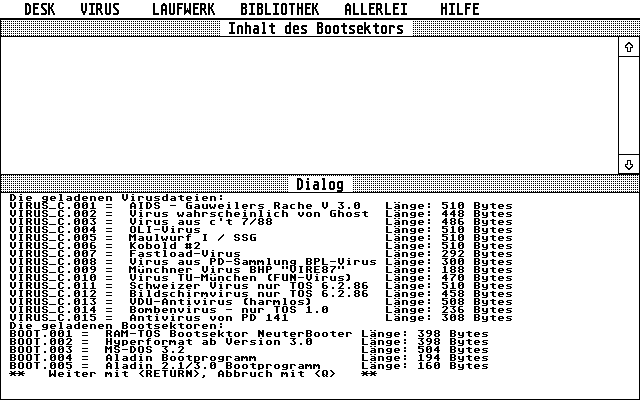

Recognized Viruses:

Boot Viruses: AIDS, Ghost, C'T, OLI, Maulwurf I, Kobold #2, Fastload, Signum BPL, BHP, Fun, Swiss, Screen, VDU, Bomb, PD 141
File Viruses: None
Others: N/A

Tasks

Task 1: Recognize boot viruses not loaded into memory

Instructions:

To test a floppy disk with Sagrotan, follow these steps:

Insert the test floppy into drive A:
Select the LAUFWERK (DRIVE) menu to select the drive
Select the menu action Laufwerk A: <A> to select drive A:
Select the VIRUS menu
Select the menu action Bootsektor prüfen <P> (Check boot sector) to test the boot sector
Click Ok to confirm the action

Then the boot sector details and the analysis result will appear

Virus	Analysis	Result

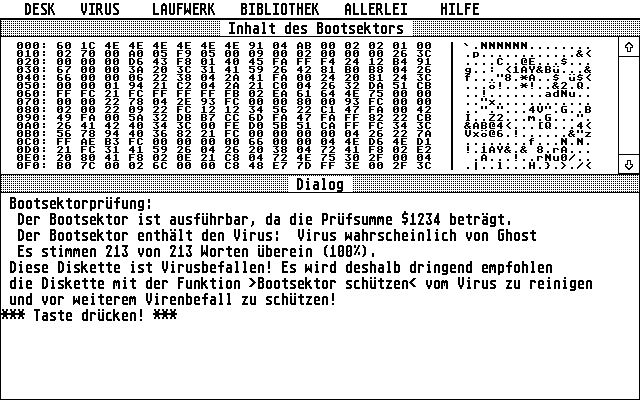

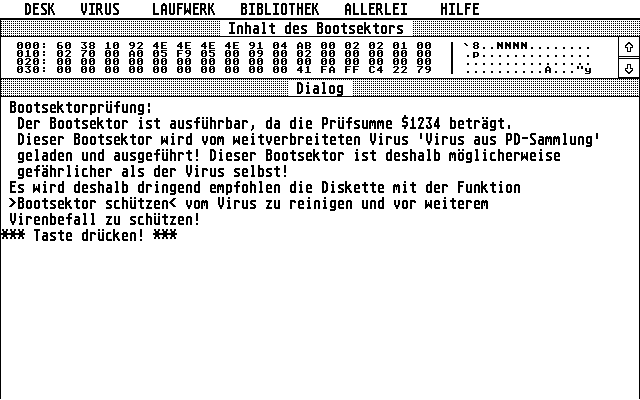

Ghost (1/5)		We see that Sagrotan successfully identified the Ghost virus
Signum BPL (1/5)		We see that Sagrotan successfully identified the Signum virus
Macumba 3.3 (4/5)		Sagrotan reported that it found no signs of a virus in the disk's boot sector

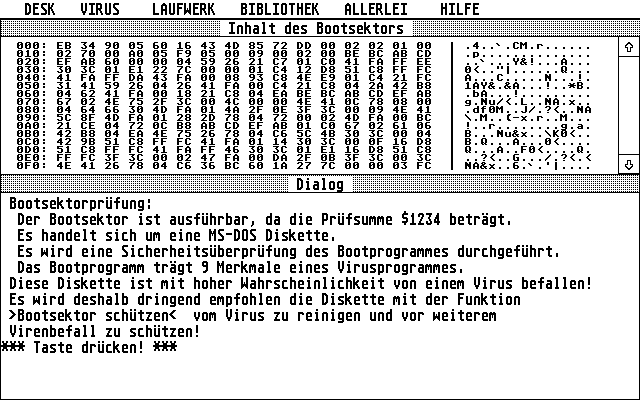

Carpe Diem (2/5)		We see that Sagrotan detected 9 signs of a viral infection

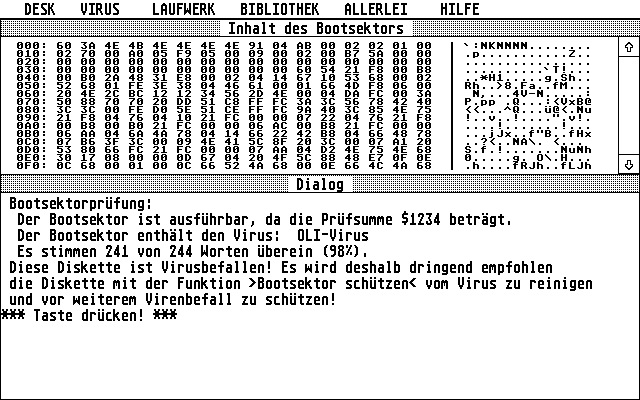

OLI (1/5)		We see that Sagrotan successfully identified the OLI virus
OLI2 (1/5)		We see that Sagrotan detected 7 signs of viral infection in OLI2

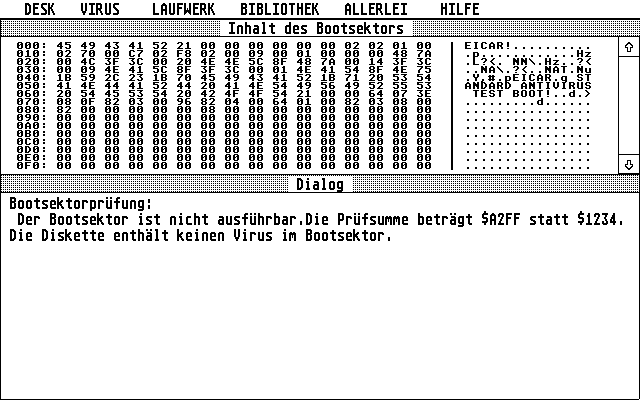

EICAR (3/5)		Sagrotan said the boot sector is not executable and contains no viruses

Task 2: Recognize boot viruses loaded into memory

Instructions

Boot from the infected floppy disk in drive A:
Change the disk to the Sagrotan disk
Run Sagrotan
Check if Sagrotan's warning appears that a virus was found in memory
If the virus was not fully detected, follow the same instructions as in Task 1

One of the most common viruses: Ghost

Test results:

Hdv_bpb vector infected
Reset vector infected

Sagrotan recognized the Ghost virus in the boot sector.

Key virus and its key disk: Signum BPL

Test results:

Hdv_bpb vector infected

Sagrotan recognized the Signum BPL virus in the boot sector.

Polymorphic virus: Macumba 3.3

Test results:

No exception vectors outside the allowed memory area.

Sagrotan did not recognize the virus in memory. Sagrotan said it found no signs of a viral infection in the boot sector.

Trojan virus: Carpe Diem

Test results:

Hdv-bpb vector is below allowed user memory
Reset vector is below allowed user memory

Sagrotan Recognized 9 signs of a viral infection in the boot sector.

Stealth virus: OLI

Test results:

Hdv-init vector is below allowed user memory
Hdv-rw vector is below allowed user memory
Trap #14 (XBIOS) vector is below allowed user memory
Reset vector is below allowed user memory

Sagrotan did not recognize the OLI virus in the boot sector.

Super Stealth virus: OLI2

Test results:

Hdv-init vector is below allowed user memory
Hdv-rw vector is below allowed user memory
Trap #14 (XBIOS) vector is below allowed user memory
Reset vector is below allowed user memory

Sagrotan did not recognize the OLI2 virus in the boot sector.

Non-executable boot sector: EICAR

Test results:

Sagrotan reported that there is nothing in memory. This is correct. Sagrotan reported that the boot sector is not executable and is safe. This is not true.

Task 3: Recognize a file virus

Instructions

Option 1

Select the VIRUS menu
Select the menu action Datein (Files) (Check files) to test files for Link Viruses
Click Ok to confirm the action
Select the drive to test
Select the file you want to check
Click Ok to confirm the action

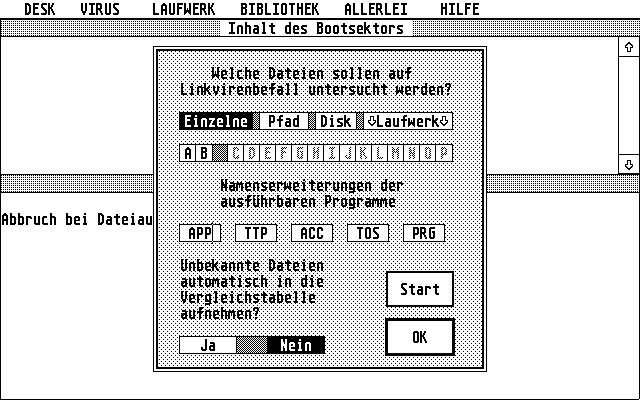

Option 2

Select the VIRUS menu
Select the menu action Optionen to configure file testing for Link Viruses
Select the file types you want to check
Click Start to confirm the action
Select the drive to test
Select the file you want to check
Click Ok to confirm the action

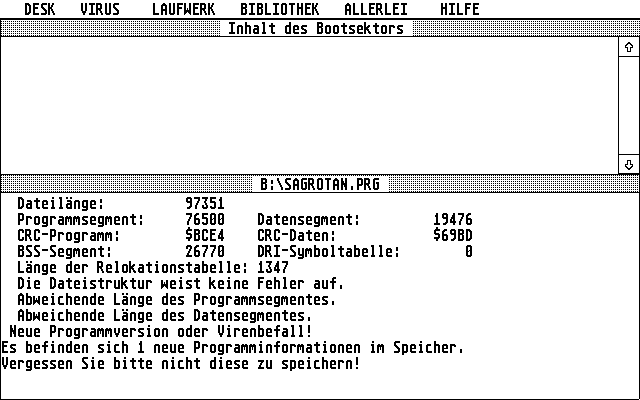

First file virus: Milzbrand

Sagrotan reported that the program has a second program but that it is a virus - unlikely.

But! Sagrotan will still recognize a virus if the program has been modified in some way.

Task 4: Restore a damaged boot sector

Instructions

Insert the test floppy into drive A:
Select the LAUFWERK (DRIVE) menu to select the drive
Select the menu action Laufwerk A: <A> to select drive A:
Select the BIBLIOTHEK (LIBRARY) menu
Select the menu action Bootsektor speichern
Click Ok to confirm the action
Press any letter and then press ENTER
Save the boot sector to the Sagrotan library and click OK

Let's check! Let's replace the boot sector with the Sagrotan vaccine and try to restore the floppy disk's boot sector. To restore the floppy disk:

Select the VIRUS menu
Select the menu action Bootsektor reparieren
Click Ok to confirm the action
Scroll down and select our recently saved boot sector which is now at the very bottom of the list
Press Bootsektor schreiben
Boot sector restored!

Task 5: Vaccinate a non-executable floppy disk

Instructions

Select the VIRUS menu

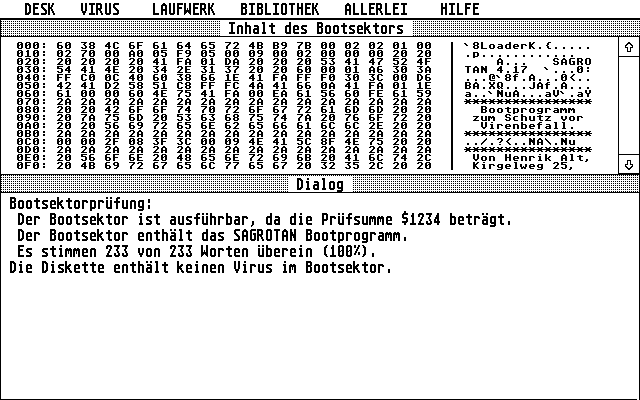

Select the menu action Bootsektor schutzen (write vaccine to boot sector)
Click Ok to confirm the action
Click Ja to confirm the action

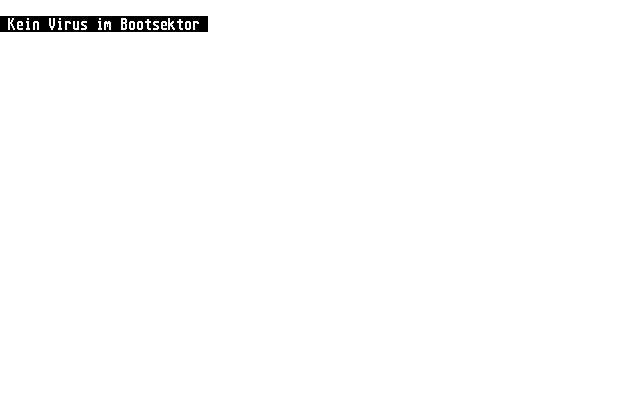

Now upon boot we will see the message "Kein Virus im Bootsektor". Let's try to run the Ghost virus and see what happens!

Load the virus into memory
Change the disk to the one vaccinated by Sagrotan
Boot from it

We will see the message "Kein Virus im Bootsektor" :( ... Sagrotan could not defeat the virus and the virus will overwrite your boot sector!

Task 6: Analyze a suspicious boot sector

Instructions

Insert the test floppy into drive A:
Select the LAUFWERK (DRIVE) menu to select the drive
Select the menu action Laufwerk A: <A> to select drive A:
Select the VIRUS menu
Select the menu action Bootsektor prüfen <P> (Check boot sector) to test the boot sector
Click Ok to confirm the action

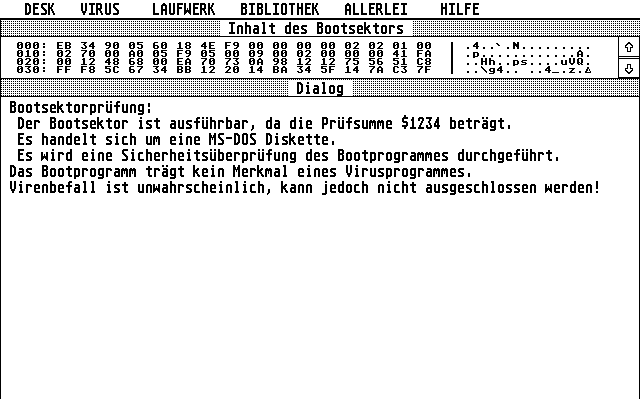

When scanning the boot sector, Sagrotan performs heuristic analysis and looks at the disk's condition. It checks:

It checks the BPB
Checksum
Signs of viral infection
Infected vectors
Sagrotan does not check for the Magic long word ($12123456)

After loading, Sagrotan will report if vectors have been changed and if so, will suggest performing a cold reboot. Sagrotan analyzes the boot sector code and outputs information about it:

Whether the BPB is damaged
How many signs of viral infection were detected
Whether the checksum equals $1234

If Sagrotan detects a familiar virus in the boot sector, it will report it and display the percentage match with the virus from the Sagrotan database.

Task 7: Detect malware when Sagrotan is not running

Instructions

Sagrotan does not have a resident TOS accessory that could detect viruses when Sagrotan is not running.

Summary and Conclusion

In the following table we have summarized the task completion results:

Task	Result
Recognize boot viruses not loaded into memory	4/7
Recognize boot viruses loaded into memory	3.5/7
Recognize a file virus	0.5/1
Restore a damaged boot sector	1/1
Vaccinate a non-executable floppy disk	0/1
Analyze a suspicious boot sector	4/5
Detect malware when Sagrotan is not running	0/2
Total	13/24

In conclusion, Sagrotan is one of the first antiviruses in history that began using heuristic analysis to recognize viruses. Its analysis methods are still relevant today!
