ACIA

In a few words...

This virus does not have a description.

The following symptoms may happen: after 22 minutes, the mouse Y axis will be inverted for 10s.

Details

  • Replication: on any floppy when a get_bpb() is called, except if the virus signature is found (value 5 at 4th byte of the bootsector)
  • Bootcode size: 308 bytes.
  • Resident address: diskbuf.
  • Start address: 0x40.
  • Stealth address: 0x600.
  • Attached vectors: hdv_bpb, vbl_queue.
  • Reset resistance: Yes.
  • TOS: All.

What's special ?

  • A kind of rework of the Ghost virus, done differently. This kind to invert the mouse Y axis, commands are sent to the ACIA from a VBL queue routine. Works but fairly bigger and complicated.
  • As commonly seen, it uses the undocumented resident routine to set up the vectors but from a set of addresses previously saved in 0x5e4-0xef8
  • uses FLOCK to decide to show the symptoms or not, not clear why

How to trigger the symptoms? - Install the virus and reboot, check the hdv_bpb vector is set and also the Resident routine to $600 - Quit to GEM and run Tiny Tool accessory - Read memory address $5e0, set the byte to $FE and click Write - Wait a few seconds and the mouse will be inverted for 10s

Fun facts

  • the description in the UVK book is not totally accurate:
  • "Virus attaches itself to: Hdv_bpb, undocumented reset-resistant.": also tho vbl queue
  • "Disks can be immunized against it: No": in fact yes if the signature is set in the OEM bytes

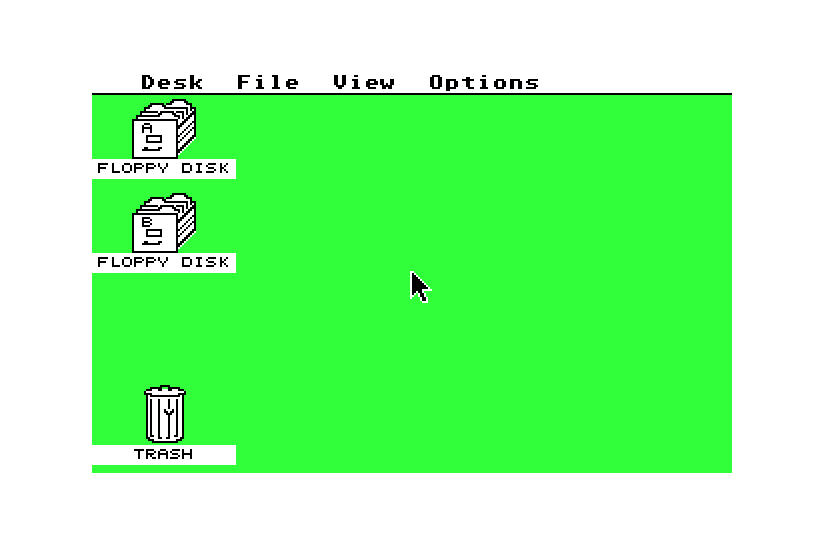

See the virus in action!
